The No-Nonsense Rocker Returns to Its Original Form

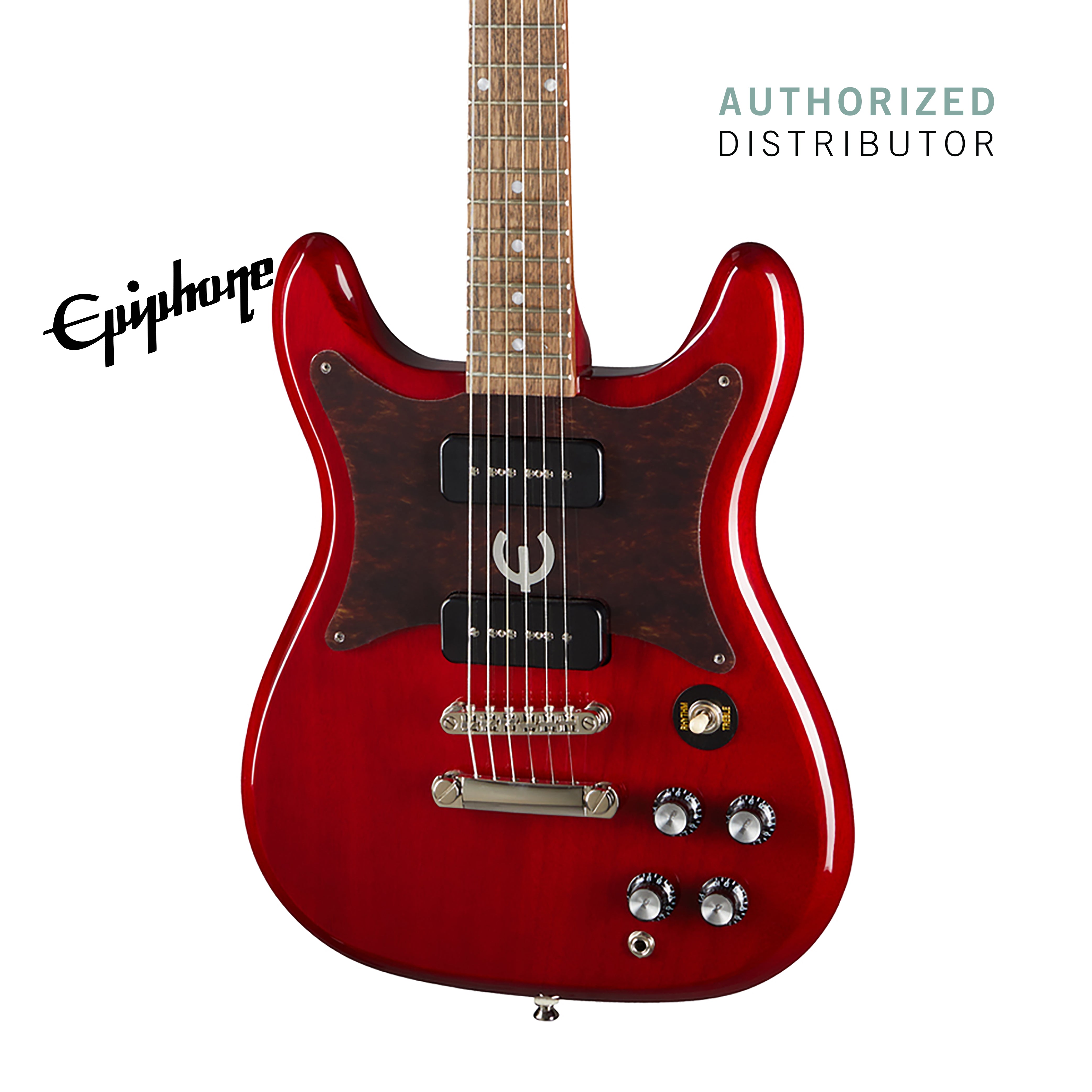

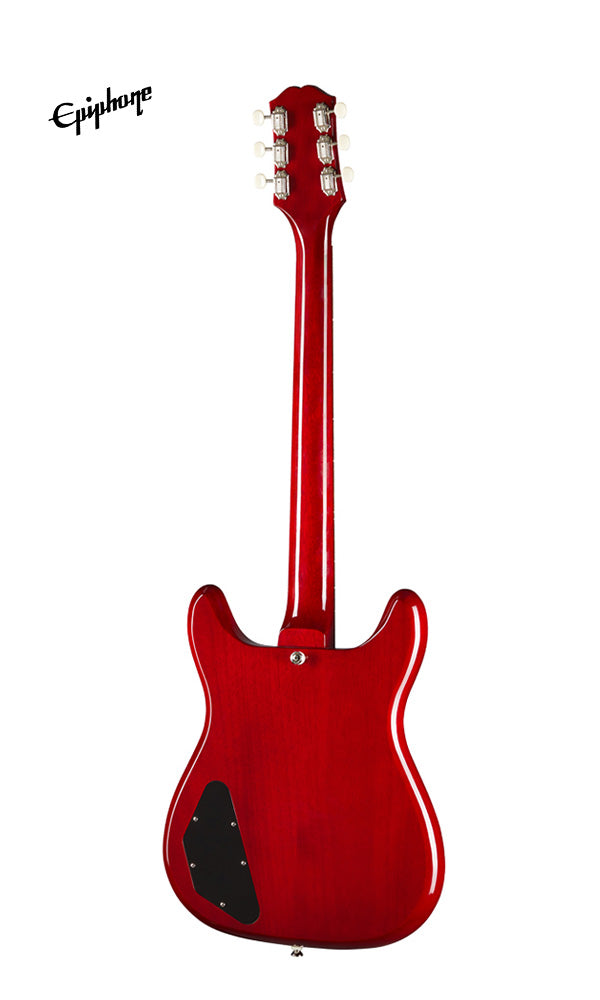

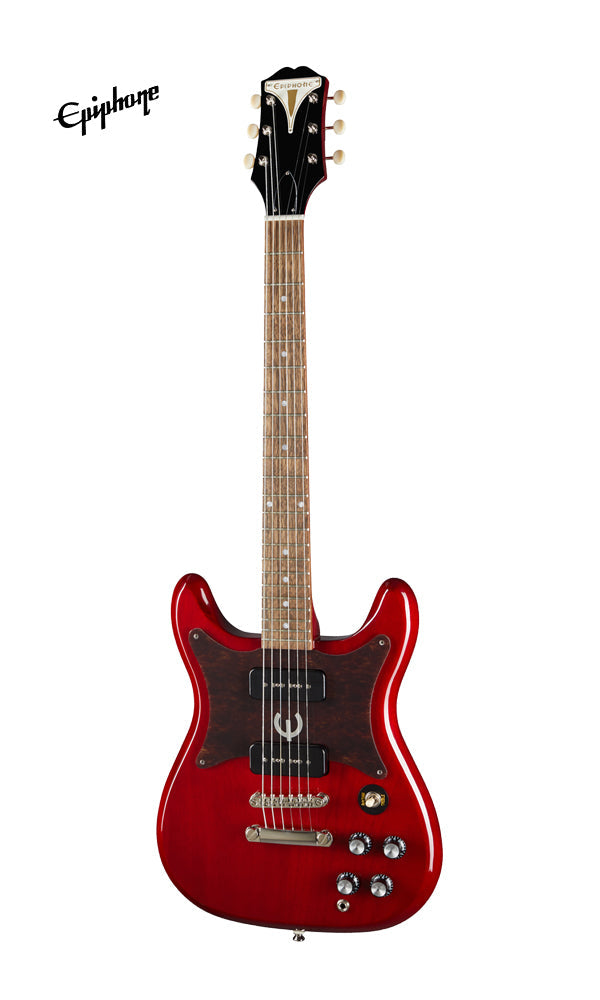

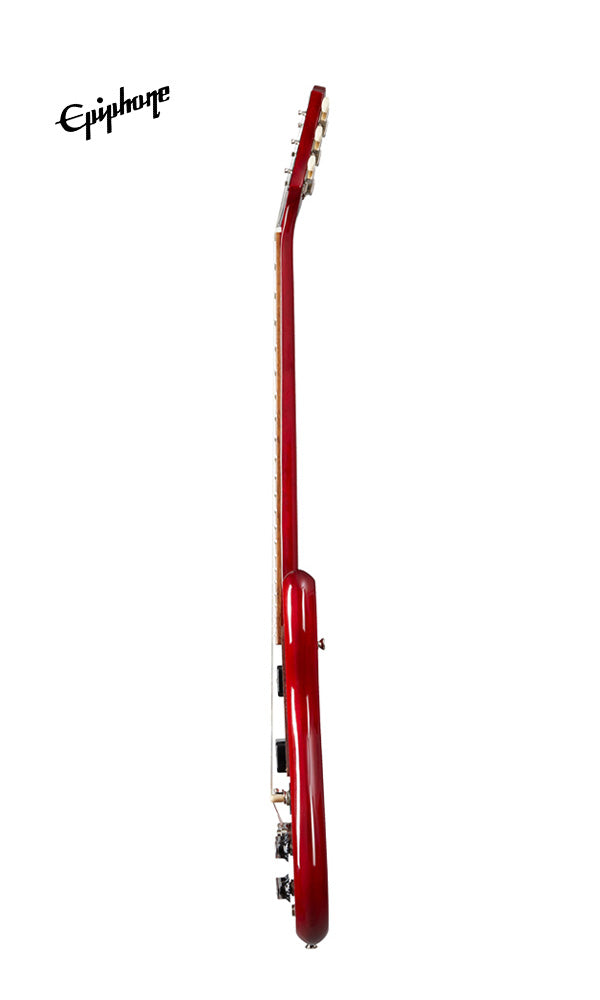

From its first appearance in 1959 the Wilshire™ has been one of Epiphone's most successful original solid body electric guitar designs. The Wilshire P-90 brings back many of the features of the earliest Wilshire models including the symmetrical double-cutaway mahogany body with dual PRO P-90 Soapbar pickups, three on a side reduced sized Kalamazoo headstock with Epiphone Bikini badge and ivory button Epiphone Deluxe tuning machines, and a butterfly tortoise shell pickguard with foil E logo. The Wilshire P-90 comes equipped with a glued-in mahogany neck with a medium C profile, Indian laurel fretboard with 12" radius and 22 medium jumbo frets, 2 volume and 2 tone controls and an Epiphone LockTone™ Tune-O-Matic™ bridge and Stop Bar tailpiece, and is available in classic Cherry and Ebony finishes.

SPECIFICATIONS

BODY

Body Styles : Double Cut
Body Shape : Symmetrical Epiphone Wilshire
Body Material : Mahogany
Body Finish : Gloss

NECK

Profile : Medium C
Scale Length : 628.0 mm / 24.724 in
Fingerboard Material : Indian Laurel
Fingerboard Radius : 305.0 mm / 12.007 in
Fret Count : 22
Frets : Medium Jumbo
Nut Material : Graph Tech® NuBone®
Nut Width : 43.0 mm / 1.692 in
Inlays : Dot
Joint : Glued in

HARDWARE

Finish : Nickel
Bridge : LockTone™ Tune-O-Matic™
Tailpiece : LockTone™ Stop Bar
Tuning Machines : Epiphone Deluxe with Ivory buttons
Pickguard : Imitation Tortoise with foil "E"
Truss Rod : Dual Action
Truss Rod Cover : 3-Ply Epiphone Bullet
Control Knobs : Black Top Hats with nickel inserts
Switch Tip : Cream
Switch washer : Black with Gold text
Control Covers : Black; PVC
Strap Buttons : 2 - bottom and below heel on body
Pickup Covers : Black Soapbar P-90

ELECTRONICS

Neck Pickup : Epiphone PRO P-90 Soapbar
Bridge Pickup : Epiphone PRO P-90 Soapbar
Controls : 2 Volume, 2 Tone, CTS® potentiometers
Pickup Selector : 3 way toggle
Output Jack : 1/4" Epiphone

MISCELLANEOUS

Strings Gauge : .010, .013, .017, .026, .036, .046
Case : Optional: EpiLite™ Case (711106481579), Hardshell Case (711106261447), Gig Bag ( 711106261980)
