SPECIFICATIONS
BODY
Material : MAPLE B-TOP/MAHOGANY
Routing : 59 LES PAUL-CARMELITA TILTED
Drilling : 59 LES PAUL
Dimension : 59 LES PAUL
Top : HAND SELECTED TOPS-THOM

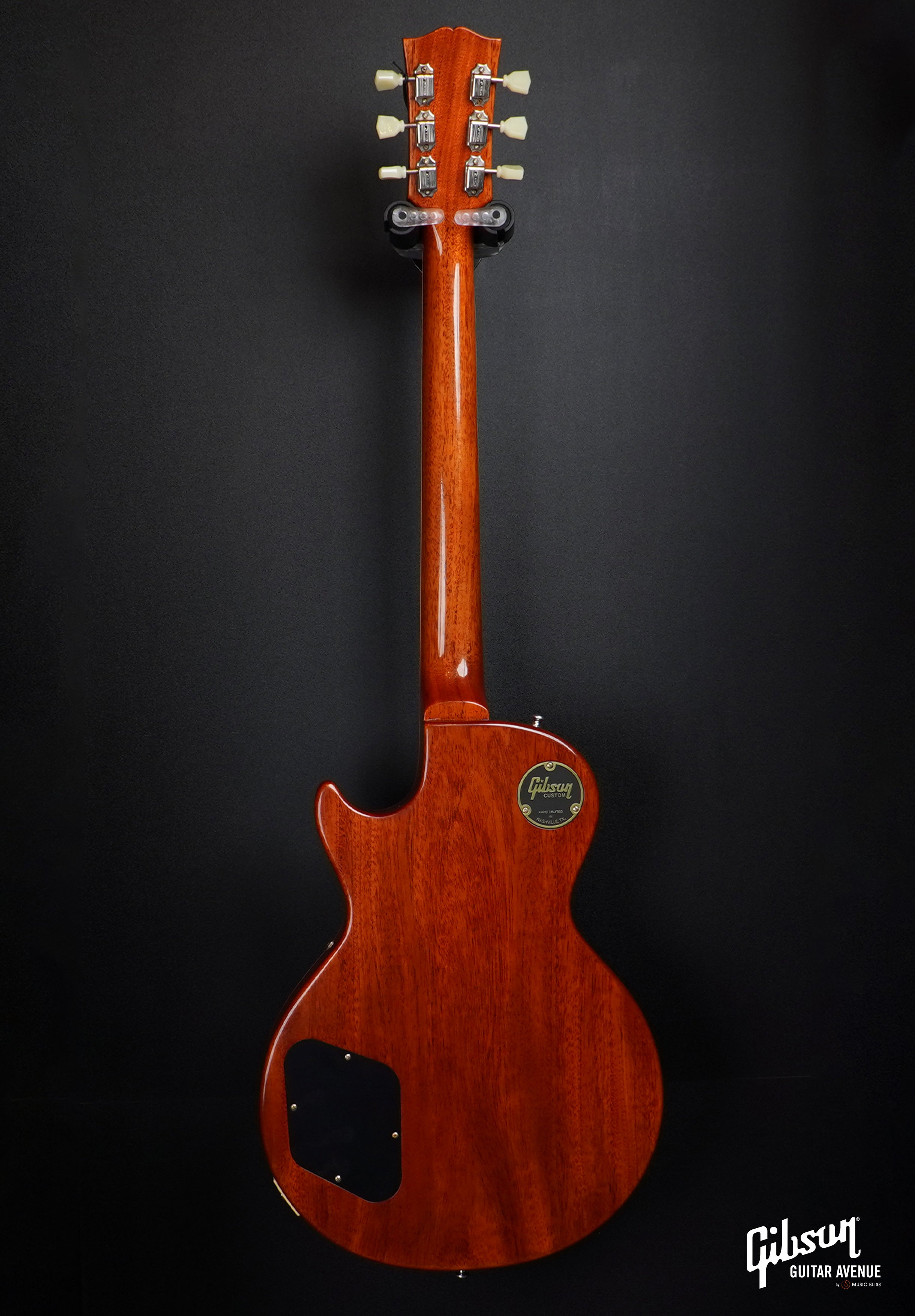

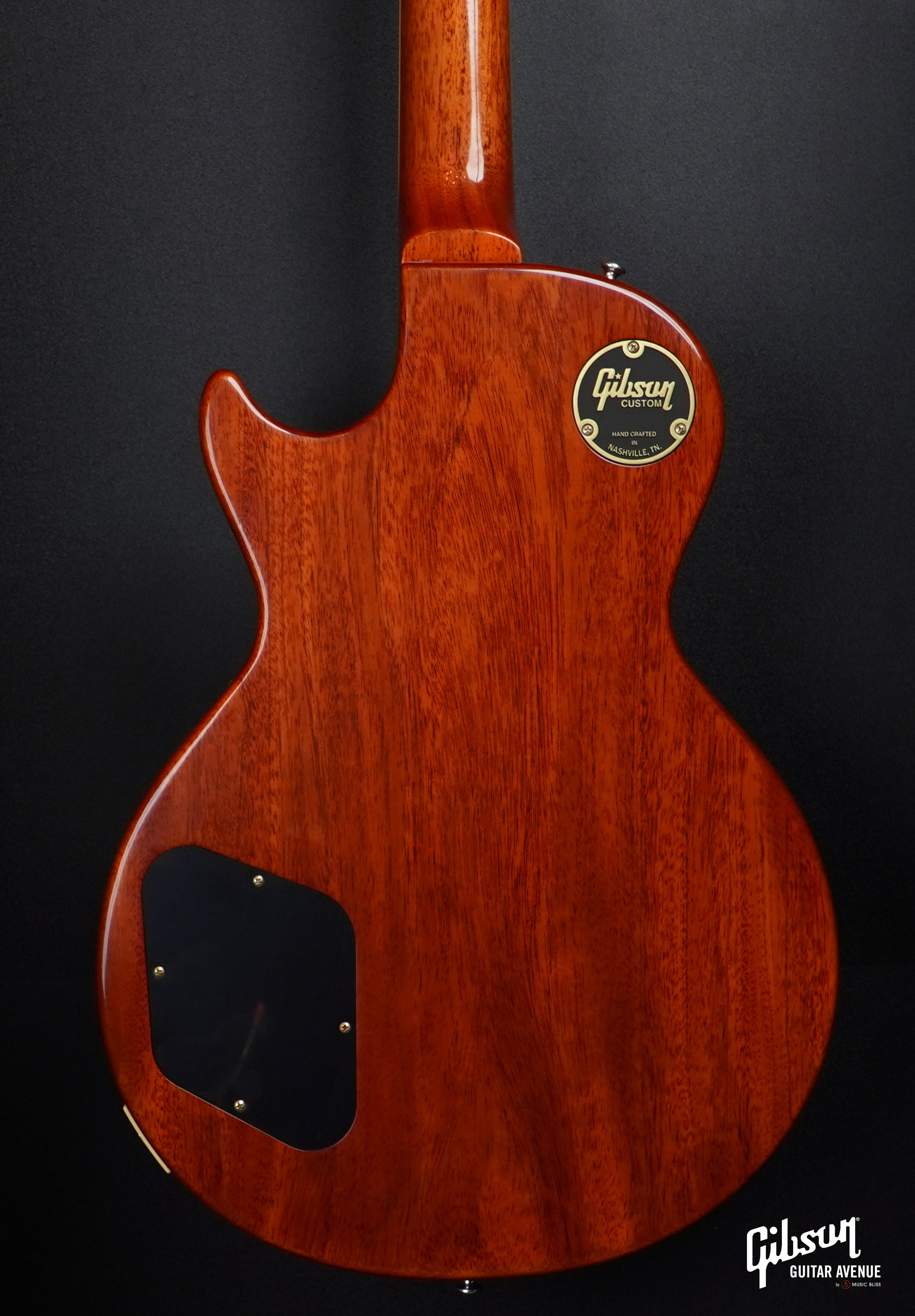

Back : MAHO 1PC LIGHT
Rim : HIDE GLUE
Body Top : .09 CREAM
Body Back
“F” Holes
Fingerboard : .04 CREAM
Head Veneer
Other : TORT SIDE DOTS

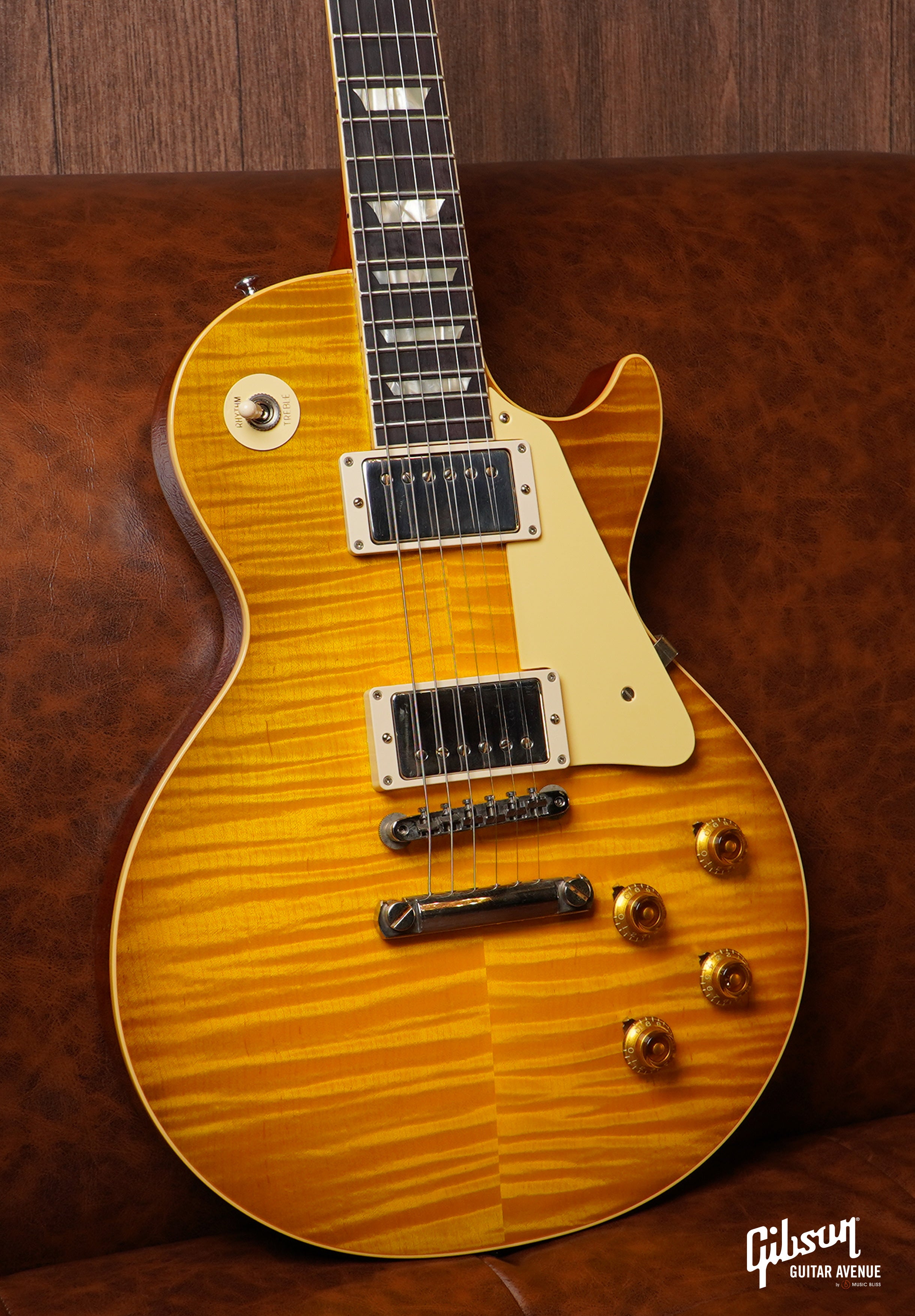

Top : GREEN LEMON FADE- USE ENHANCER - MATCH SAMPLE-VOS
Back : #3 FADED CHERRY AD - VOS
Neck : #3 FADED CHERRY AD - VOS
Rims : #3 FADED CHERRY AD - VOS
NECK
Material : MAHOGANY-

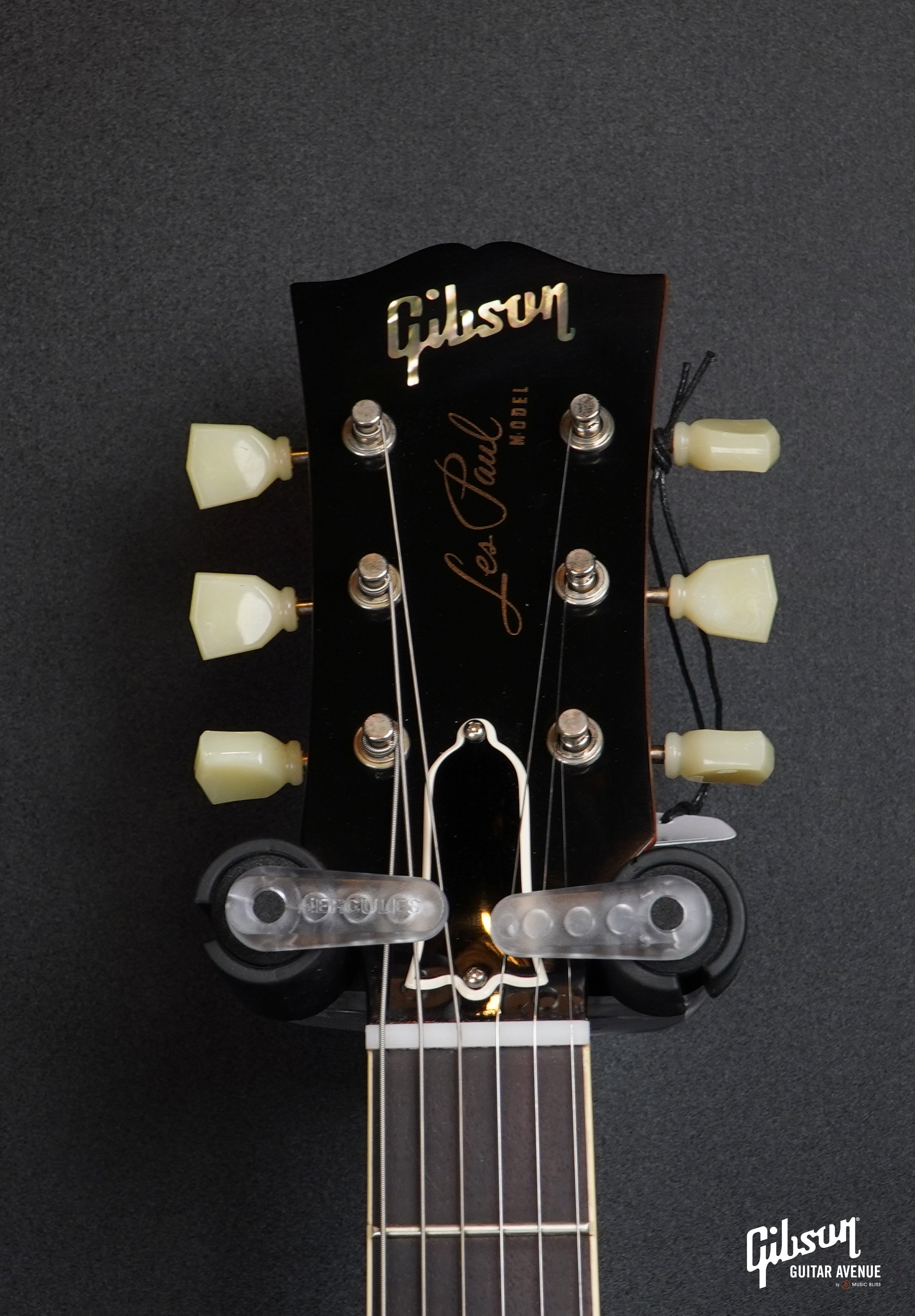

Peghead : REISSUE
Head Veneer : REISSUE
Dimensions : CARMELITA FINE CARVED-DO NOT ROLL
Material : DARK INDIAN ROSEWOOD 1PC
Scale : 24 3/4
Dimension : STD
Nut : NYLON

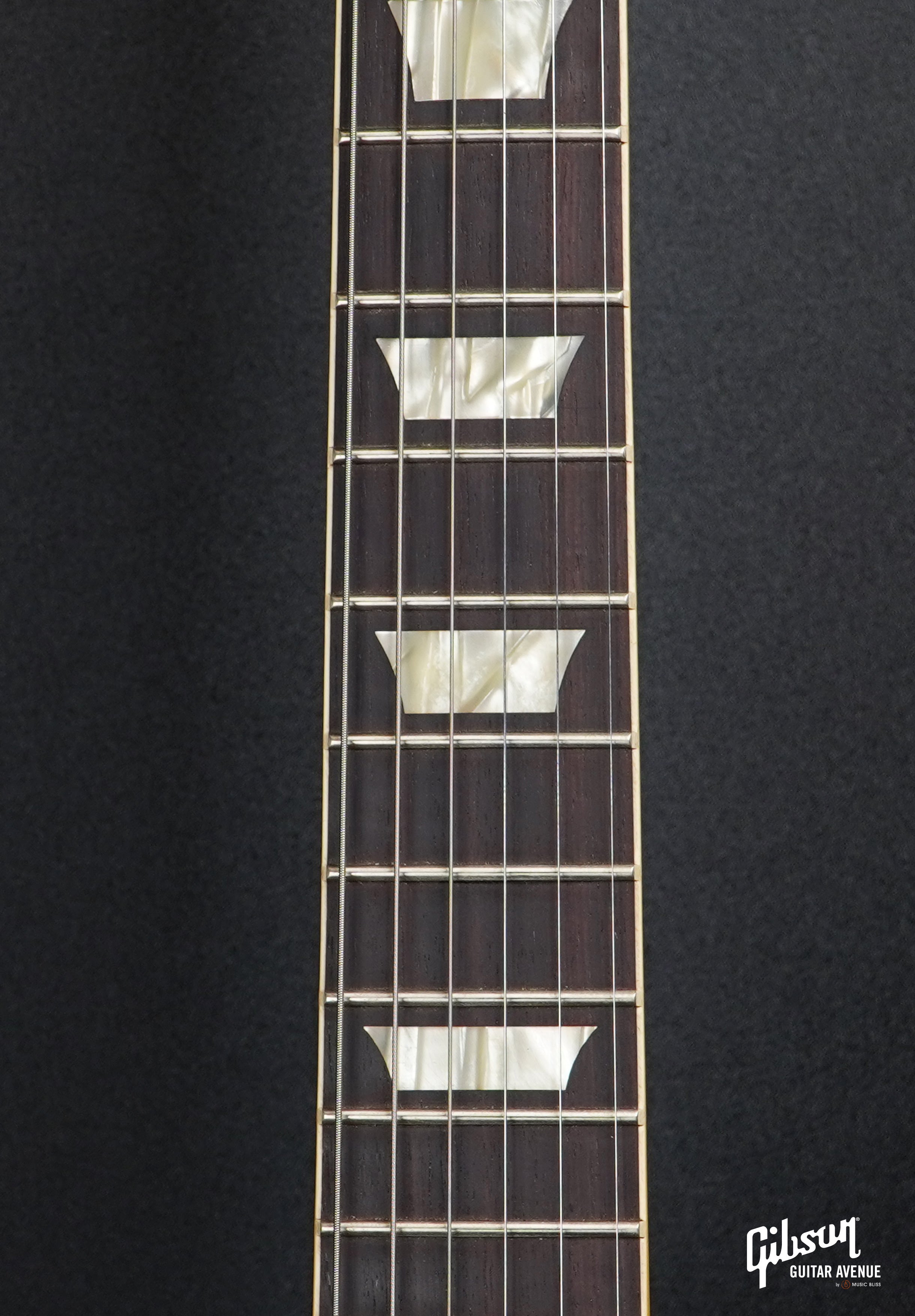

Inlays : REISSUE with NEW MATERIAL
Fretwire : REISSUE
ELECTRONICS
Pickup(s) : CSTBUCKER UNPOTTED NPC TH MCMR
CSTBUCKER UNPOTTED NPC TH XHCMR
Circuitry : TH COVERS AND RINGS
Control
Other
Other : 2019 CPA (PIO CAPS, VINT TAPER POTS)
HARDWARE
Hardware Material : NICKEL LIGHT AGED

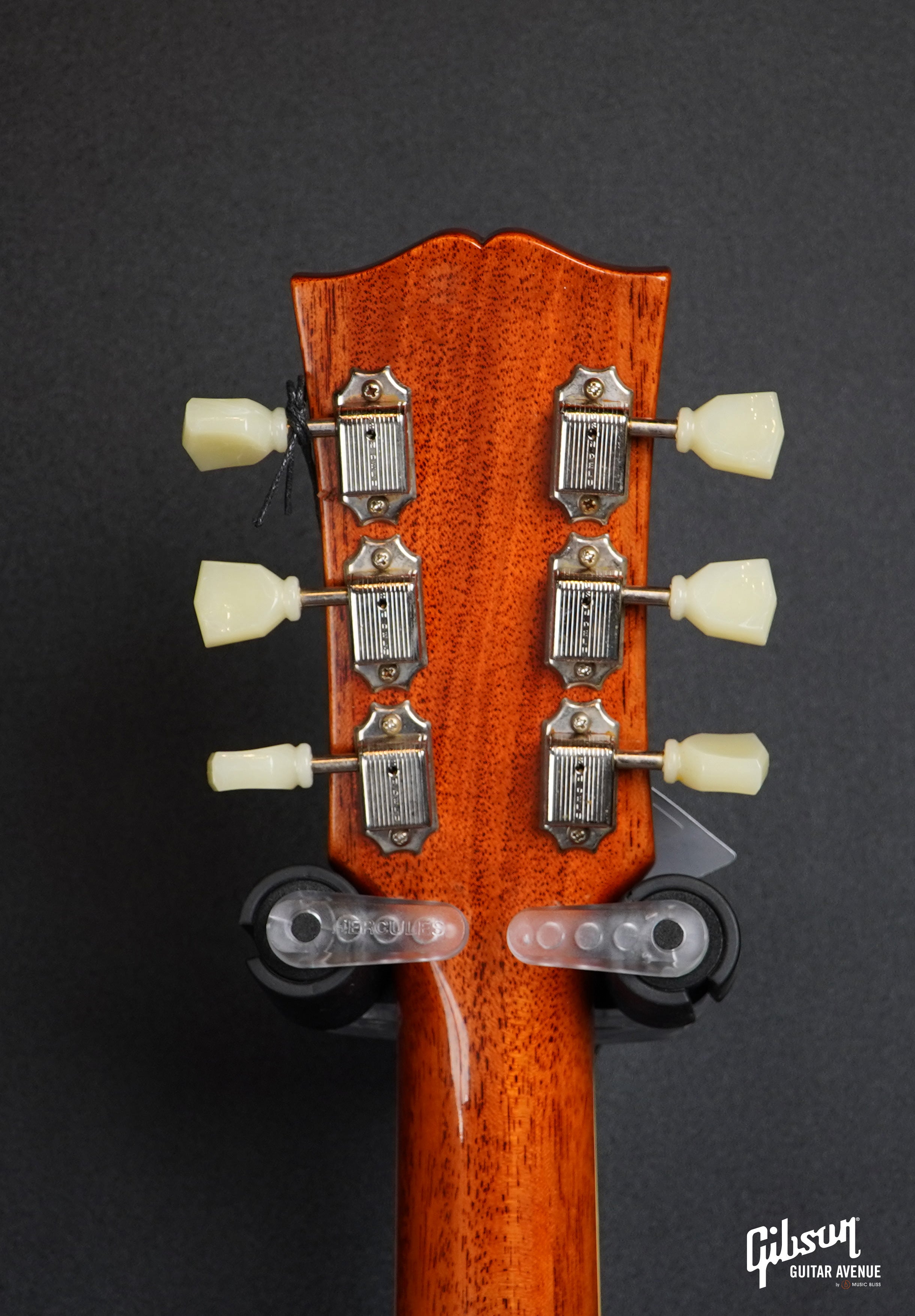

Machine Head : KLUSON REISSUE
Bridge : ABR-1 NON WIRE
Tailpiece : LIGHT WEIGHT w/LONG STUD, ANCHOR
Vibrola
Jackplate : TRUE HISTORIC REISSUE
End Pin : AL
Truss Cover : TRUE HISTORIC FROM ADVANCED
Pickguard : TRUE HISTORIC R9
Knobs : TRUE HISTORIC GOLD TOP HATS
Mounting Rings : TRUE HISTORIC CREAM
Switch Tip : TRUE HISTORIC AMBER

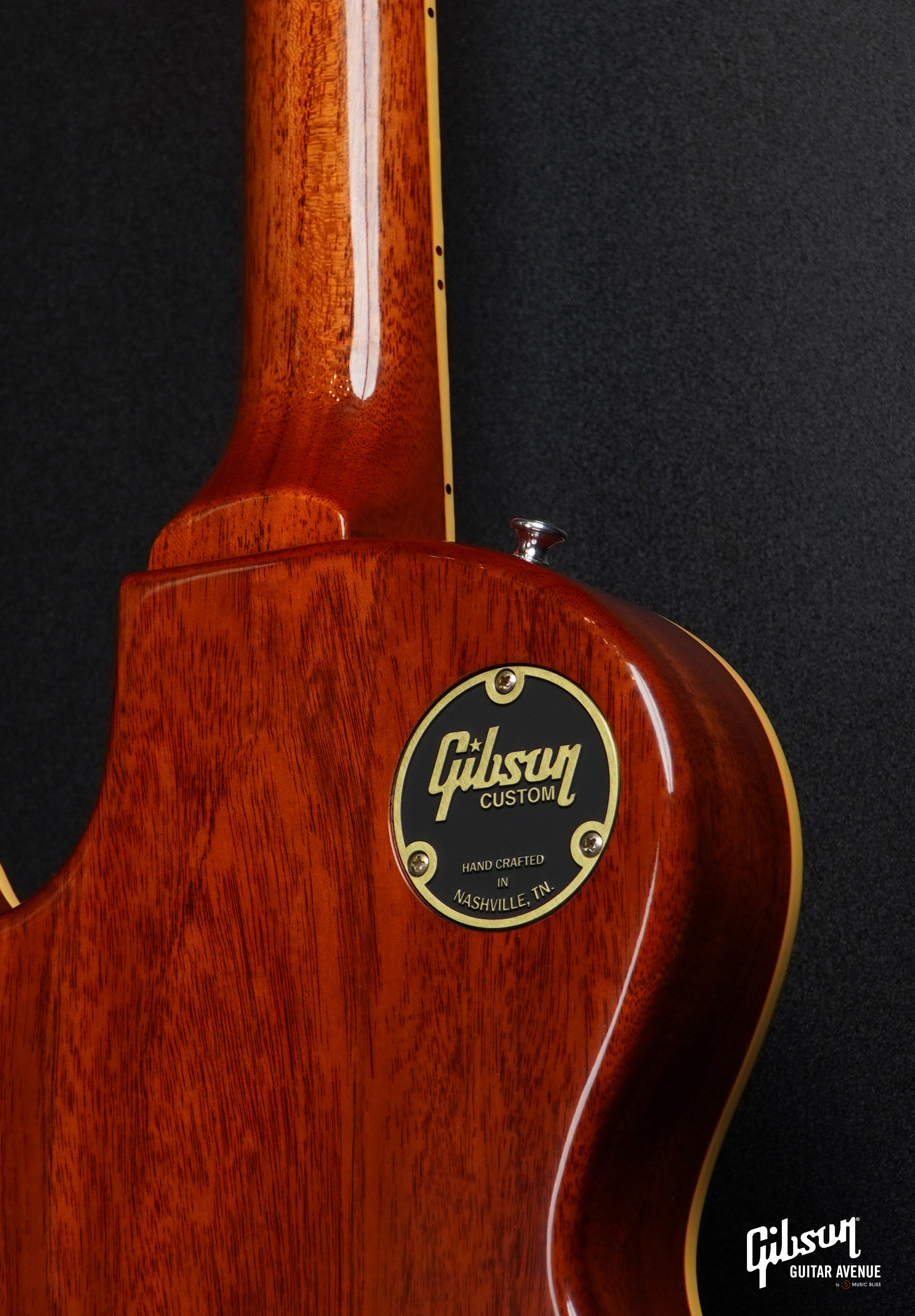

Backplates : CS MEDALLION + REISSUE IN CASE
Other : TRUE HISTORIC CREAM SWITCH WASHER
MISCELLANEOUS
Case : GWW CASE FOR GLOSS OR VOS-GWW AGED CASE FOR AGED PRODUCT
