The Light and Loaded ES-335

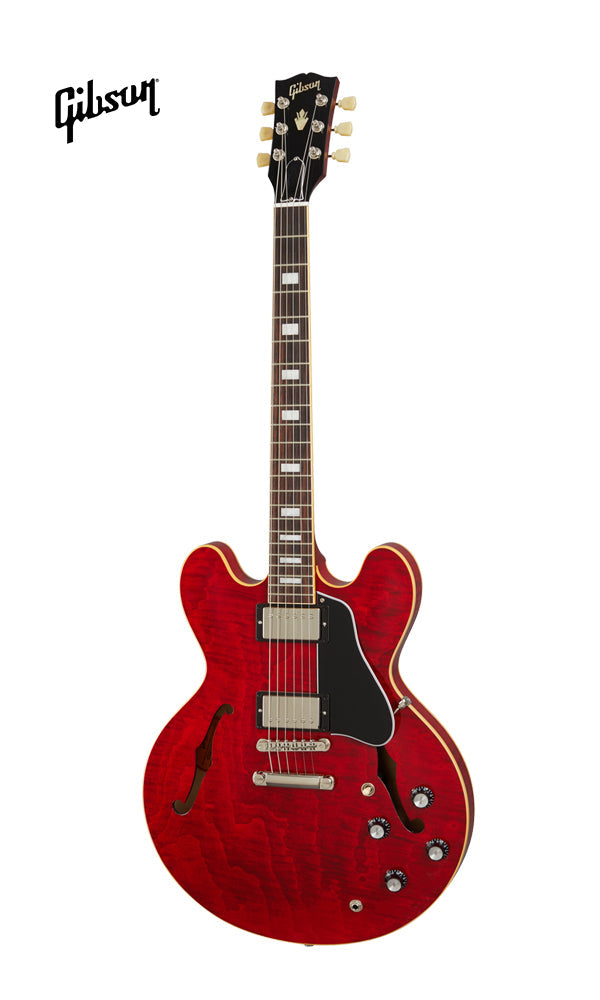

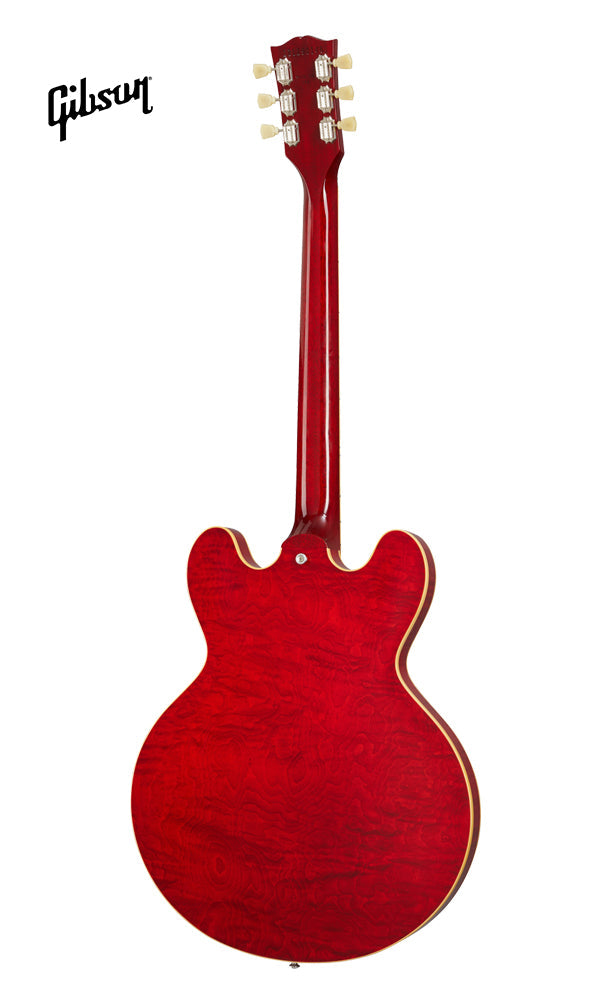

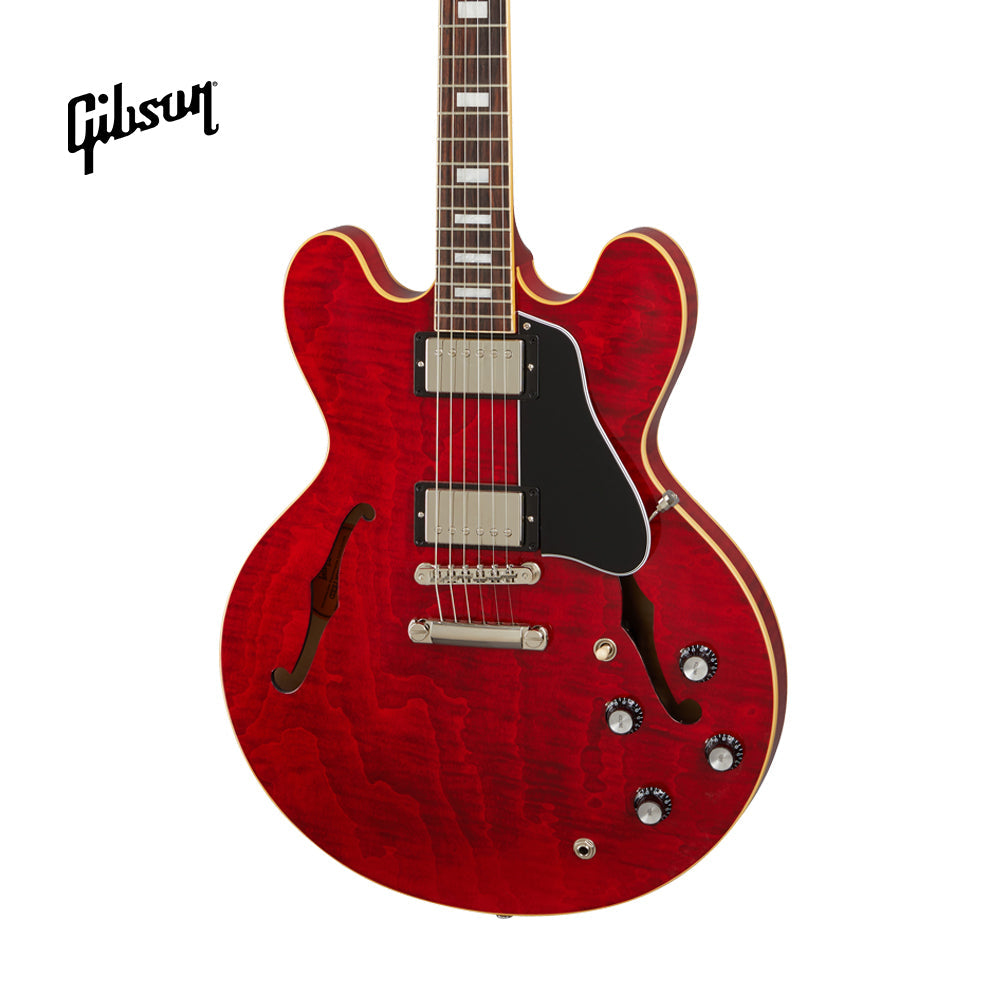

The Gibson ES-335 Figured is the perfect blend of form and function. Crafted with a maple centerblock and quarter-sawn Adirondack spruce bracing, players will be impressed by the lightweight feel and expanded range of tonal capabilities. Equipped with high-end appointments like our hand-wired control assembly with Orange Drop® capacitors, Gibson's new Calibrated T-Type humbucking pickups, Vintage Deluxe style tuners and light weight aluminum ABR-1 bridge and Stop Bar tailpiece anchored with steel thumb-wheels and studs. The AAA figured maple is set off by staggering gloss finishes including Sixties Cherry, Antique Natural, and Iced Tea.

SPECIFICATIONS

BODY

Body Styles : ES
Body Shape : 335
Top : 3-ply AAA Figured Maple/Poplar/Maple
Back : 3-ply AAA Figured Maple/Poplar/Maple
Bracing : Quarter-Sawn Adirondack Spruce
Centerblock : Maple
Binding : Single-ply Cream
Body Finish : Gloss Nitrocellulose Lacquer

NECK

Profile : Rounded "C"
Scale Length : 628.65 mm / 24.75 in
Fingerboard Material : Rosewood
Fingerboard Radius : 304.8 mm / 12 in
Fret Count : 22
Frets : Medium Jumbo
Nut Material : Graph Tech
Nut Width : 43.053 mm / 1.695 in
End Of Board Width : 57.404 mm / 2.26 in
Inlays : Acrylic Small Blocks

HARDWARE

Finish : Nickel
Bridge : ABR-1 Tune-O-Matic
Tailpiece : Aluminum Stop Bar
Tuning Machines : Vintage Deluxe w/ Keystone Buttons
Pickguard : Black 5-ply
Control Knobs : Black Top Hats with Silver Reflector
Switch Tip : Cream

ELECTRONICS

Neck Pickup : Calibrated T-Type, Rhythm
Bridge Pickup : Calibrated T-Type, Lead
Controls : 2 Volumes, 2 Tones & Toggle Switch (Hand-wired with Orange Drop Capacitors)

MISCELLANEOUS

Strings Gauge : .010, .013, .017, .026, .036, .046
Case : Hard Shell Case
Accessories : Includes Gibson Accessory Kit
